Sample Depot being Built by Perseverance Rover on Mars
NASA’s Perseverance rover is building the first sample depot on another world. This marks a crucial milestone in the NASA-ESA Mars Sample Return campaign, which aims to bring Mars samples to Earth for closer study.
“Seeing our first sample on the ground is a great capstone to our prime mission period, which ends on Jan. 6.”
Rick Welch, Perseverance’s deputy project manager at JPL.

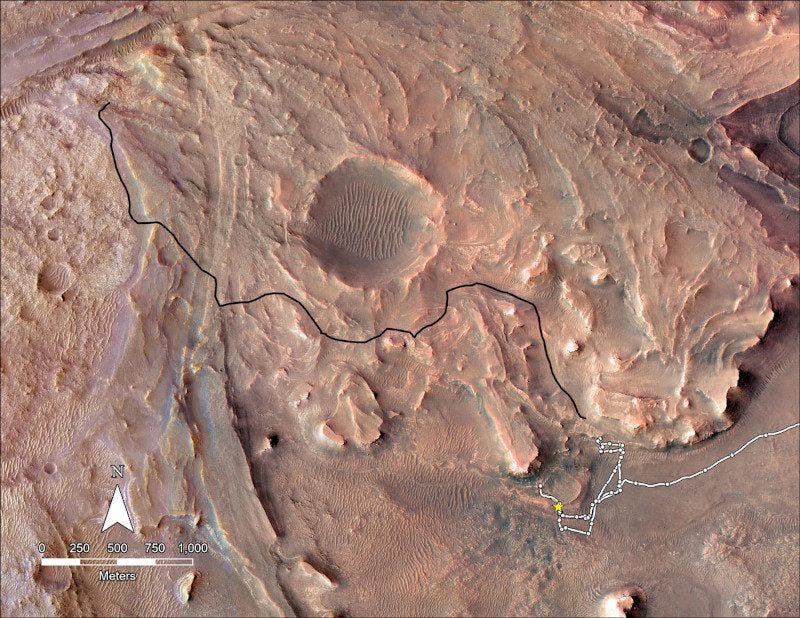

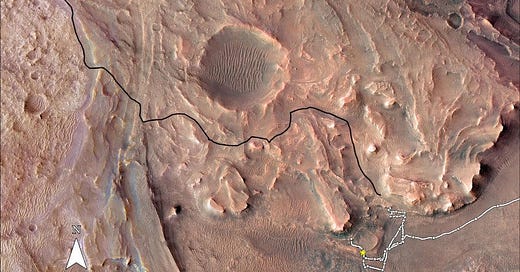

The sample depot-building process started when the rover dropped one of its titanium sample tubes carrying a chalk-size core of rock from its belly 2.9 feet onto the ground at an area within Jezero Crater nicknamed “Three Forks.” Over the course of 30 or so days, Perseverance will deposit a total of 10 tubes that carry samples representing the diversity of the rock record in Jezero Crater. The first tube was dropped December 21st.
Perseverance has been taking duplicate samples from rock targets the mission selects. The rover currently has the other 17 samples (including one atmospheric sample) taken so far in its belly. Based on the architecture of the Mars Sample Return campaign, the rover would deliver samples to a future robotic lander. The lander would, in turn, use a robotic arm to place the samples in a containment capsule aboard a small rocket that would blast off to Mars orbit, where another spacecraft would capture the sample container and return it safely to Earth.
The sample depot will serve as a backup if Perseverance can’t deliver its samples. In that case, a pair of Sample Recovery Helicopters would be called upon to finish the job.
First Sample Depot Drop was Collected Nearly a Year Ago
The first sample to drop was a chalk-size core of igneous rock informally named “Malay,” which was collected on Jan. 31, 2022, in a region of Mars’ Jezero Crater called “South Séítah.” Perseverance’s complex Sampling and Caching System took almost an hour to retrieve the metal tube from inside the rover’s belly, view it one last time with its internal CacheCam, and drop the sample roughly 3 feet onto a carefully selected patch of Martian surface.
But the job wasn’t done for engineers at NASA’s Jet Propulsion Laboratory in Southern California, which built Perseverance and leads the mission. Once they confirmed the tube had dropped, the team positioned the WATSON camera located at the end of Perseverance’s 7-foot-long robotic arm to peer beneath the rover, checking to be sure that the tube hadn’t rolled into the path of the rover’s wheels.
They also wanted to ensure the tube hadn’t landed in such a way that it was standing on its end (each tube has a flat end piece called a “glove” to make it easier to be picked up by future missions). That occurred less than 5% of the time during testing with Perseverance’s Earthly twin in JPL’s Mars Yard. In case it does happen on Mars, the mission has written a series of commands for Perseverance to carefully knock the tube over with part of the turret at the end of its robotic arm.
In coming weeks, they’ll have other opportunities to see whether Perseverance needs to use the technique as the rover deposits more samples at the Three Forks sample depot.
“Seeing our first sample on the ground is a great capstone to our prime mission period, which ends on Jan. 6,” said Rick Welch, Perseverance’s deputy project manager at JPL. “It’s a nice alignment that, just as we’re starting our cache, we’re also closing this first chapter of the mission.”
(Source: NASA news release. Images provided)
