Roll-Out Solar Arrays Delivering Power Boost to ISS
The second of two new roll-out solar arrays has been connected to the International Space Station (ISS) to complete the installation of the first pair of ISS Roll-Out Solar Arrays (iROSA). The arrays were developed and delivered to NASA by Redwire under contract with Boeing, NASA's prime contractor for space station operations.
"The successful installation of Redwire's innovative iROSA technology will provide a critical power boost to support human endeavors in low Earth orbit."
Andrew Rush, President and COO of Redwire.
The arrays, developed by Redwire, were launched June 3 aboard the SpaceX-22 cargo resupply mission to the ISS. NASA astronaut Shane Kimbrough and European Space Agency astronaut Thomas Pesquet installed the arrays on the far end of the port-side truss of the ISS during three spacewalks on June 16, June 20 and June 25.
"The successful installation of Redwire's innovative iROSA technology will provide a critical power boost to support human endeavors in low Earth orbit," said Andrew Rush, President and COO of Redwire. "This mission highlights the station's upgradability and the vital role commercial infrastructure plays in human spaceflight."

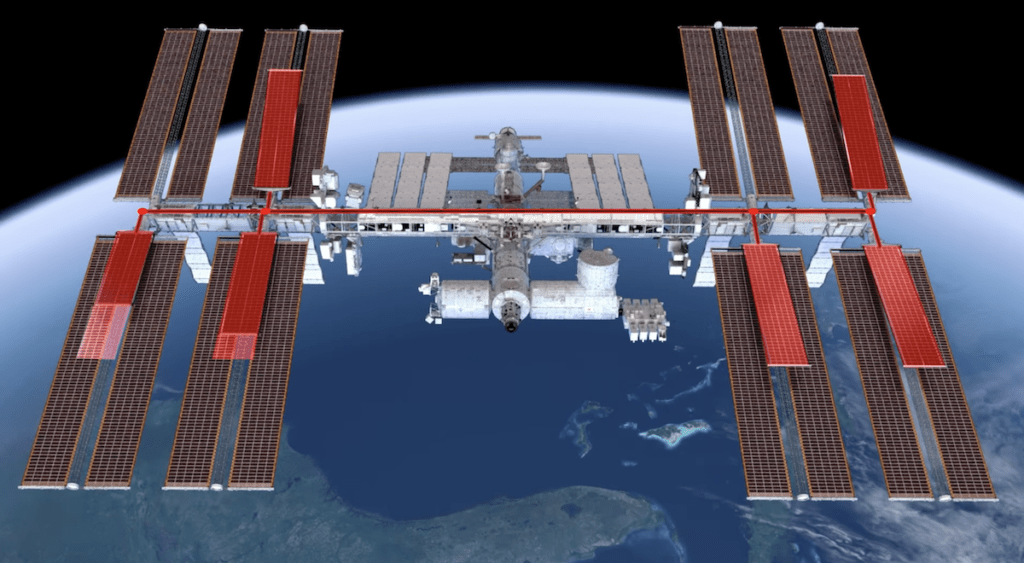

The newly installed solar arrays are the first pair, with the remaining four scheduled to be installed in the near future.
The arrays use upgraded solar cells developed by Boeing's Spectrolab, enabling each iROSA solar array to provide more than 20 kilowatts of power at the beginning of life. This makes the iROSA arrays some of the most powerful solar arrays ever built. With all six arrays in place after missions in 2022 and 2023, the ISS will be able to produce 20 to 30 percent more power than in its previous configuration.

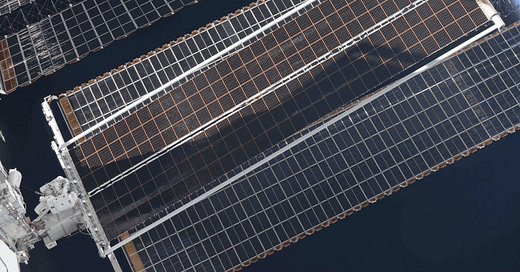

Redwire's roll out solar array technology is compact, modular, and scalable, making it ideal for use on the ISS and other spaceflight platforms. iROSA uses large, flexible solar arrays with flexible composite booms that are rolled up for storage, launch, and delivery. When installed, each iROSA unit unrolls without the need for motors or other equipment, giving iROSA an advantage over rigid solar arrays and other traditional technologies. The technology behind iROSA was first demonstrated on the ISS in June 2017.
Redwire is also producing various modular versions of ROSA for many government and commercial spaceflight applications, including NASA's DART mission, Maxar's Power and Propulsion Element for NASA's Gateway program and the Ovzon 3 GEO spacecraft for Maxar's Legion-class satellites. The same technology increasing the ISS's available power is also planned to power NASA's Gateway, part of the agency's Artemis program.
(Source: Redwire news release. Image provided by Redwire)
