New Image of ADRAS-J Target Debris Released
Spacecraft Moves to Within 50 Meters of its Objective
The commercial debris inspection demonstration satellite, Active Debris Removal by Astroscale-Japan (ADRAS-J), has achieved another unprecedented milestone for a commercial company. ADRAS-J successfully completed the safe and controlled approach to an unprepared space debris object – a rocket upper stage – to a relative distance of approximately 50 meters, collecting further images and data while maintaining a controlled fixed point relative position from the upper stage.

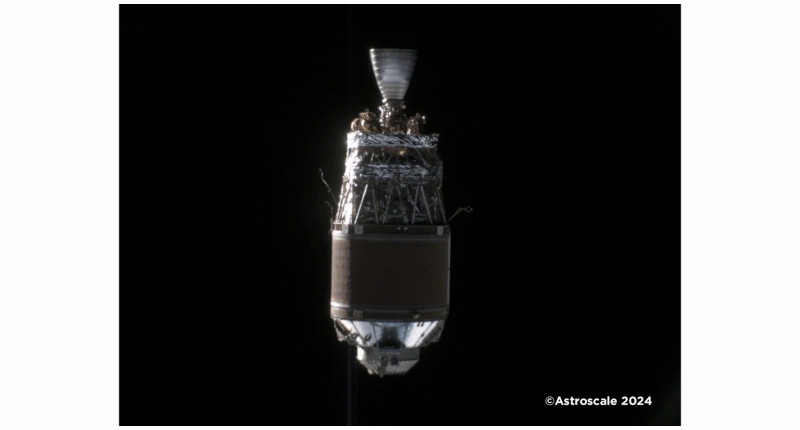

Astroscale recently released this second image from the mission, taken in May It follows the first image released on April 26, captured from several hundred meters behind the debris.
ADRAS-J is a groundbreaking mission as the world’s first attempt to safely approach, characterize and survey the state of an existing piece of large debris through Rendezvous and Proximity Operations[1]. ADRAS-J is designed to rendezvous with an unprepared Japanese upper stage rocket body (approximately 11 meters long, 4 meters in diameter, and weighing approximately 3 tons), demonstrate proximity operations, and gather images to assess the rocket body’s movement and condition of the structure. Unprepared objects in orbit pose an additional challenge as they are not designed with any technologies that enable docking or potential servicing or removal.
The ADRAS-J mission has reached several milestones since rendezvous operations began on February 22. During this phase, the ADRAS-J spacecraft started maneuvering towards the upper stage client’s orbit using GPS and ground-based observation data.
By April 9, ADRAS-J had successfully detected the client with its on-board visual camera and started the proximity approach phase, underscored by starting Angles Only Navigation, a navigation method used to estimate relative position and velocity through the servicer’s on-board cameras. When ADRAS-J was within a few kilometers of the debris, the team successfully transitioned relative navigation control to the on-board infrared camera with Astroscale developed Model Matching Navigation (MMN) algorithms. This navigation method estimates relative distance by comparing captured images or data of the client to a pre-existing model.
On April 16, ADRAS-J began using MMN to process data on the client’s characteristics, such as the shape and attitude, and successfully approached a relative distance of several hundred meters by April 17. In May, ADRAS-J safely and successfully approached the client to approximately 50 meters and conducted fixed-point observations.
